Visualizing WordNet relationships as graphs
The WordNet database contains all sorts of interesting relationships between words: it can categorize words into hierarchies, find the parts of an object, and answer many other interesting questions.
The code below relies on the NLTK and NetworkX libraries for Python.
Categorizing words

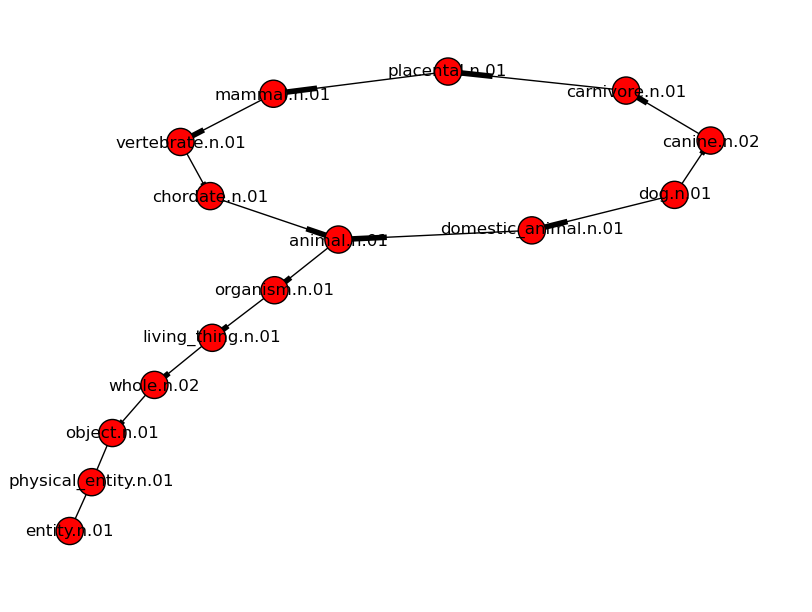

What, exactly, is a dog? It’s a domestic animal and a carnivore, not to mention a physical entity (as opposed to an abstract entity, such as an idea). WordNet knows all these facts:
How do we generate this image? First, we look up the first entry for “dog” in WordNet. This returns a “synset”, or a set of words with equivalent meanings.
dog = wn.synset('dog.n.01')
Next, we compute the transitive closure of the hypernym relationship, or (in English) we look for all the categories to which “dog” belongs, and all the categories to which those categories belong, recursively:
graph = closure_graph(dog,
lambda s: s.hypernyms())
After that, we just pass the resulting graph to NetworkX for display:
nx.draw_graphviz(graph)
The implementation
The closure_graph
function repeatedly calls fn
on the supplied symset, and uses the result to build a NetworkX graph. This code goes at the top of the file, so you can use wn
and nx
in your own code.
from nltk.corpus import wordnet as wn
import networkx as nx
def closure_graph(synset, fn):
seen = set()
graph = nx.DiGraph()
def recurse(s):
if not s in seen:
seen.add(s)
graph.add_node(s.name)
for s1 in fn(s):
graph.add_node(s1.name)
graph.add_edge(s.name, s1.name)
recurse(s1)
recurse(synset)
return graph
By using a high-quality graph library, we make it much easier to merge, analyze and display our graphs.
More graphs

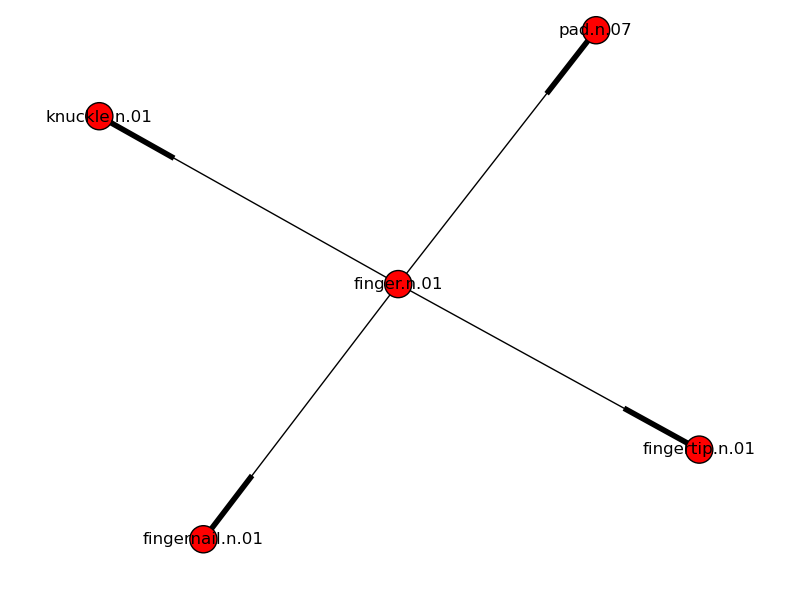

Parts of the finger, generated with synset('finger.n.01')
and part_meronyms
:

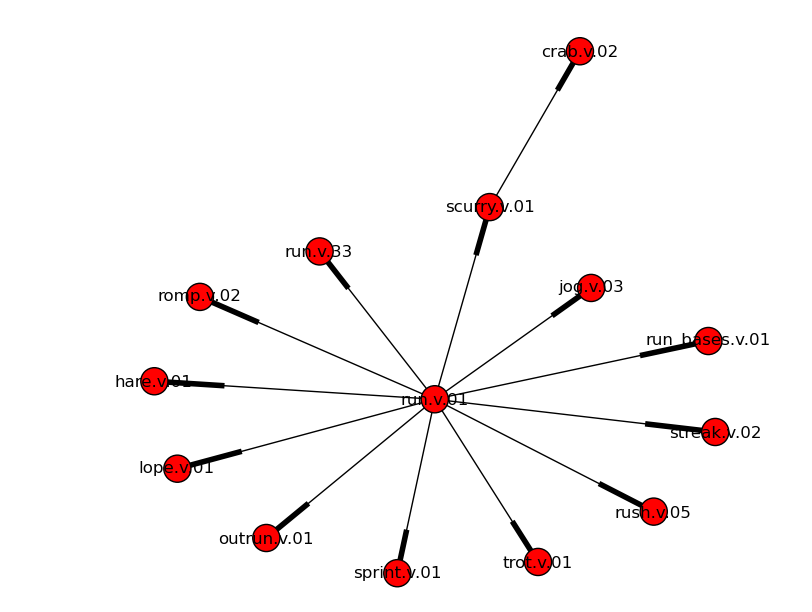

Types of running, generated with synset('run.v.01')
and hyponyms
:
